OEM Sumner Series 2000 Outrigger Lock Assembly Parts
Shop Sumner Series 2000 outrigger lock assembly parts for OEM replacement components used in compatible Series 2000 material lifts. This page is built for buyers looking to repair, maintain, or rebuild the outrigger lock assembly using the official exploded parts breakdown for the 783940 Outrigger Lock Assembly.
Find the Right Outrigger Lock Parts for Sumner Series 2000 Lifts
If you need to replace a worn lock finger, damaged lock tube, spring, pin, or related lock hardware, this page is designed to help you identify and order the correct Sumner outrigger lock replacement parts faster. It is ideal for buyers searching by part number, component name, or outrigger lock assembly type.
Parts Included in the Series 2000 Outrigger Lock Assembly
-
783941 – Outrigger Lock Tube
-
783942 – Outrigger Lock Finger
-
783944 – Outrigger Support Tube Sub
-
771141 – Screw, HHC 1/2-13 x 2.75 in LN
-
772358 – Nut, Insert Jam 1/2-13
-
779938 – Cap, Rect Red 3/16 x 0.5 x 2.0
-
776221 – Century Spring #2952
-
774084 – Pin, Spring 3/16 x 2.0
Important Product Note
The outrigger support tube sub is installed to support the assembly during shipment and is to be discarded before installation. This page helps buyers identify the correct lock assembly components while avoiding confusion during service and installation.

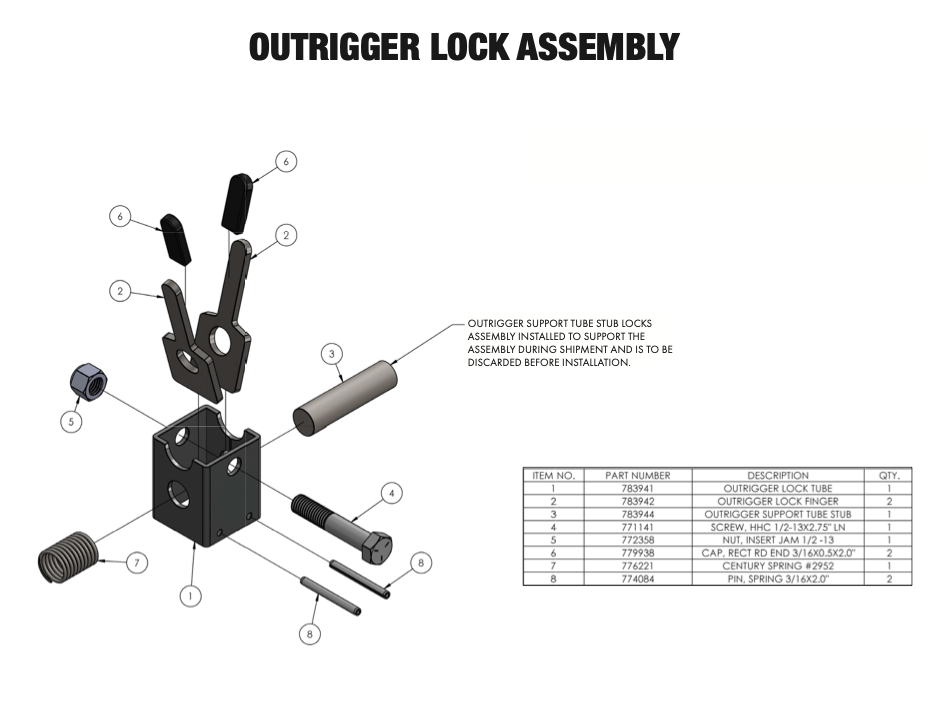

Built Around the Official Outrigger Lock Assembly Diagram
This page is structured around the official Outrigger Lock Assembly diagram so buyers can identify the correct parts for service and repair work. It is especially useful for customers replacing lock tubes, lock fingers, springs, pins, and related locking hardware on compatible Sumner lifts.
Compatible Sumner Series 2000 Models
-
783700 – 2010 Material Lift
-
783701 – 2015 Material Lift
-
783702 – 2020 Material Lift
-
783703 – 2025 Material Lift
-
783223 – 2010G Material Lift - Galvanized
-
786781 – 2015G Material Lift - Galvanized
-
786782 – 2020G Material Lift - Galvanized
-
786783 – 2025G Material Lift - Galvanized
Why Order OEM Sumner Outrigger Lock Parts
Using the correct OEM Sumner outrigger lock assembly replacement parts helps maintain proper stabilizer locking, fit, and safe lift operation. Exact-match parts reduce downtime, simplify repairs, and help avoid compatibility problems caused by ordering the wrong lock components or hardware.
Order Sumner Series 2000 Outrigger Lock Parts Online
Browse and order Sumner Series 2000 outrigger lock assembly replacement parts online, including the lock tube, lock finger, spring, pin, and related hardware used in the outrigger lock setup. For the best results, search by part number, component name, or lift model.
