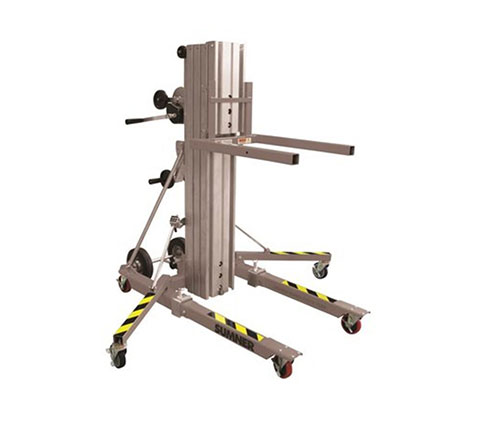

Sumner 2016SG Galvanized Short Stack Lift
The Sumner 2016SG Short Stack Lift, part 784087, is a galvanized 16 ft material lift designed for contractors and industrial users who need higher lifting reach in a compact, doorway-friendly frame. As part of the Series 2000 Short Stack™ lineup, the 2016SG delivers an 800 lb load capacity while offering a shorter stowed profile for easier transport, storage, and indoor maneuverability.
Galvanized Short Stack Design with Greater Lift Height
The Sumner 2016SG is built for buyers who want the extra vertical reach of a 16 ft lift without giving up the compact transport advantages of the Short Stack platform. Its galvanized construction adds durability and corrosion resistance, while the short-stack design still allows the unit to move through standard doorways and tighter work areas.
Key Benefits of the Sumner 2016SG
-
800 lb load capacity for demanding lifting applications
-
16 ft lifting height for higher overhead positioning work
-
Galvanized model for added durability and corrosion resistance
-
Compact frame fits through standard doorways for easier indoor access
-
Integrated lifting eye for overhead crane handling
-
360° pulley guard for improved cable protection and operator safety
-
Internal cable routing to reduce operator exposure
-
Reversible forks for greater height flexibility
-
Tool-free setup with plunger pins for fast assembly and transport
-
Accessory-ready platform with official Sumner optional accessories available
Common Applications
The Sumner 2016SG Galvanized Short Stack Lift is ideal for users who need higher indoor lifting reach in a more corrosion-resistant platform. It is especially well suited for:
- HVAC installation
- Mechanical contracting
- Warehouse material handling
- Indoor construction work
- Facility maintenance
- Applications where a galvanized finish is preferred
Sumner 2016SG Specifications
-
Model: 2016SG
-
Part Number: 784087
-
Description: 2016S Short Stack Lift - Galvanized
-
Footprint: 73 x 31.25 in / 1,854 x 793 mm
-
Lifting Height: 16 ft / 4.88 m
-
Load Capacity: 800 lbs / 362 kg
-
Height Stowed: 63.5 in / 1,612 mm
-
Length Stowed: 34 in / 863 mm
-
Length Operating: 73 in / 1,854 mm
-
Base Width: 31.25 in / 793 mm
-
Width with Stabilizer Legs: 74 in / 1,879 mm
-
Ground Clearance: 2.5 in / 63 mm
-
Load Height: 6 in / 152 mm
-
Max Height: 14 ft 3 in / 4.3 m
-
Shipping Weight: 365 lbs / 165 kg
-
Shipping Dimensions: 36 x 30 x 67 in / 914 x 762 x 1,702 mm
Why Buy the Sumner 2016SG Short Stack Lift
If you need a compact galvanized 16 ft material lift with 800 lb capacity, the Sumner 2016SG gives you an excellent balance of reach, portability, and durability. It delivers the higher vertical range needed for more demanding overhead jobs while preserving the compact Short Stack format that makes handling and transport easier.
Order the Sumner 2016SG Online
Buy the Sumner 2016SG Galvanized Short Stack Lift for compact, high-capacity lifting in HVAC, mechanical, warehouse, and indoor construction applications. This model is ideal for buyers searching for a Sumner 2016SG, Sumner 784087, galvanized short stack lift, or 16 ft 800 lb compact material lift.
