OEM Sumner Series 2000 Tray Assembly Parts
Shop Sumner Series 2000 tray assembly parts for OEM replacement components used in compatible Series 2000 material lifts. This page is built for buyers looking to repair, maintain, or rebuild the tray assembly using the official exploded parts breakdown for the 786321 tray weldment.
Find the Right Tray Parts for Sumner Series 2000 Lifts
If you need to replace a damaged tray weldment, worn plunger, spring, or split ring, this page is designed to help you identify and order the correct Sumner tray assembly replacement parts faster. It is ideal for buyers searching by part number, component name, or tray assembly type.
Parts Included in the Series 2000 Tray Assembly
-
786321 – Tray Weldment 2000/2100/2500
-
782510 – Plunger
-
776212 – Spring, #C0480-042-1250-M
-
775110 – Split Ring, 1-1/4 in Nickel Plated

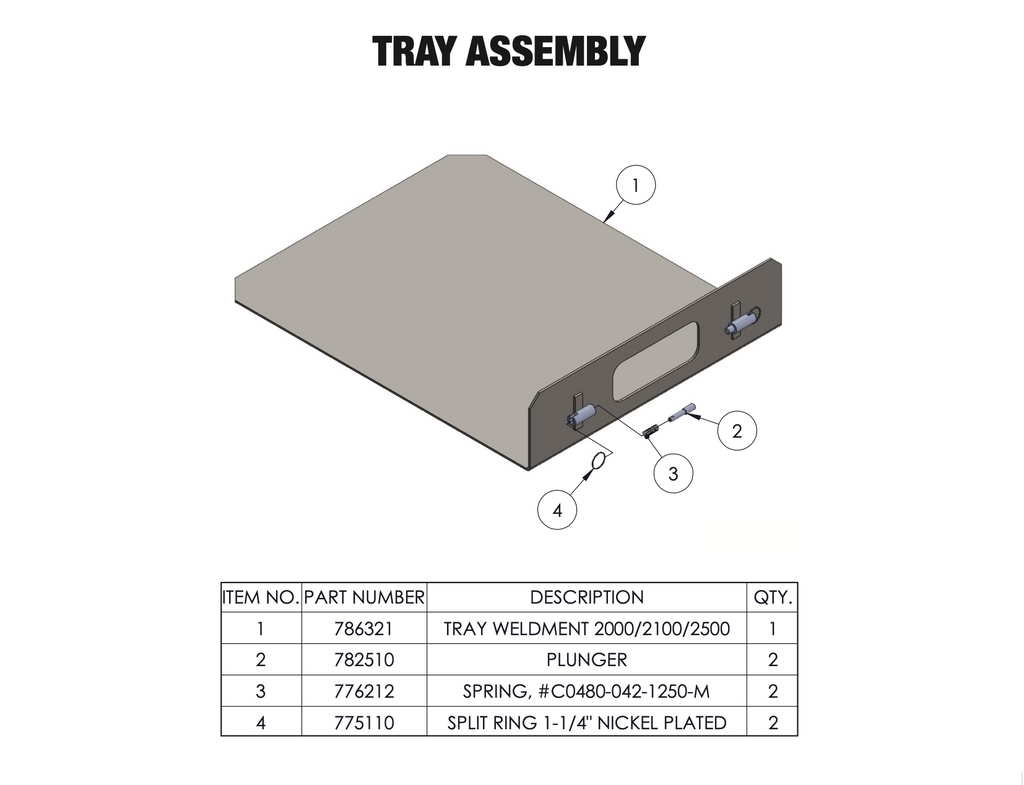

Built Around the Official Tray Assembly Diagram
This page is structured around the official Tray Assembly diagram so buyers can identify the correct parts for service and repair work. It is especially useful for customers replacing the tray weldment, plungers, springs, and related tray-retention components on compatible Sumner lifts.
Compatible Sumner Series 2000 Models
-
783700 – 2010 Material Lift
-
783701 – 2015 Material Lift
-
783702 – 2020 Material Lift
-
783703 – 2025 Material Lift
-
783223 – 2010G Material Lift - Galvanized
-
786781 – 2015G Material Lift - Galvanized
-
786782 – 2020G Material Lift - Galvanized
-
786783 – 2025G Material Lift - Galvanized
Why Order OEM Sumner Tray Parts
Using the correct OEM Sumner tray assembly replacement parts helps maintain fit, support, and safe lift operation. Exact-match parts reduce downtime, simplify repairs, and help avoid compatibility problems caused by ordering the wrong tray weldment or tray-locking components.
Order Sumner Series 2000 Tray Parts Online
Browse and order Sumner Series 2000 tray assembly replacement parts online, including the tray weldment, plunger, spring, and split ring components used in the tray setup. For the best results, search by part number, component name, or lift model.
