OEM Sumner Series 2000 Leg Lock Assembly Parts
Shop Sumner Series 2000 leg lock assembly parts for OEM replacement components used in compatible Series 2000 material lifts. This page is built for buyers looking to repair, maintain, or rebuild the leg lock assembly using the official exploded parts breakdown for the 783740 leg lock weldment.
Find the Right Leg Lock Parts for Sumner Series 2000 Lifts
If you need to replace a damaged leg lock weldment, worn plunger, spring, or split ring, this page is designed to help you identify and order the correct Sumner leg lock assembly replacement parts faster. It is ideal for buyers searching by part number, component name, or leg lock assembly type.
Parts Included in the Series 2000 Leg Lock Assembly
-
783740 – Leg Lock Weldment
-
782510 – Plunger
-
776212 – Spring, #DWC-042-G-9
-
775110 – Split Ring, 1-1/4 in Nickel Plated

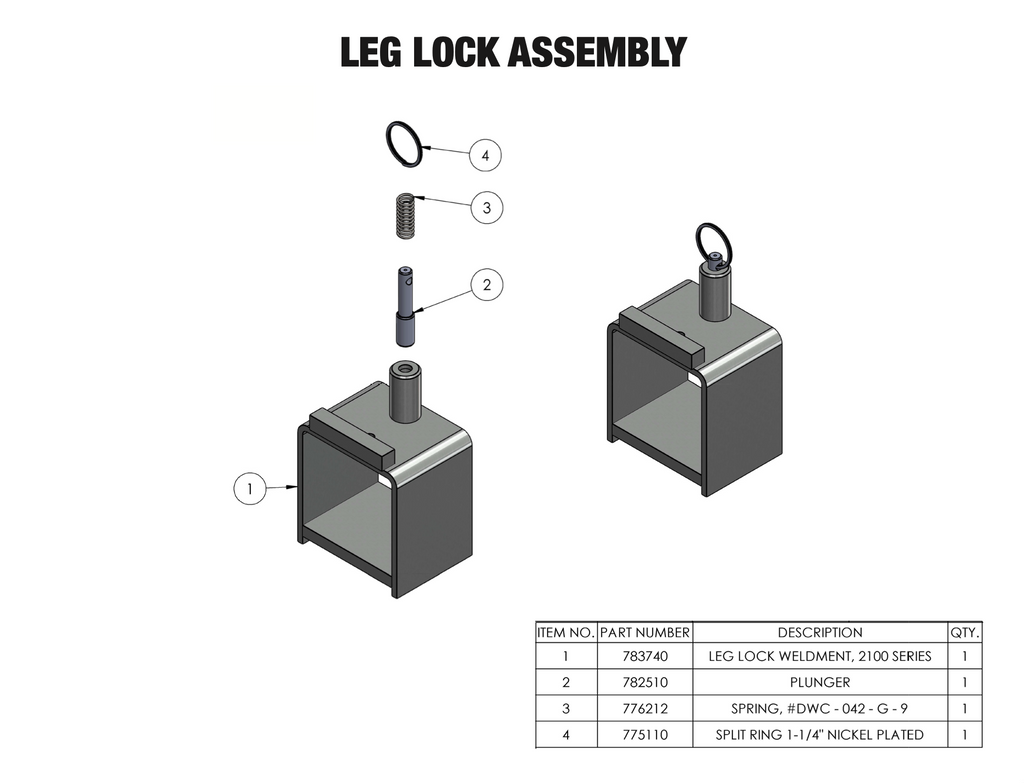

Built Around the Official Leg Lock Assembly Diagram
This page is structured around the official Leg Lock Assembly diagram so buyers can identify the correct parts for service and repair work. It is especially useful for customers replacing leg lock weldments, plungers, springs, and related leg-retention components on compatible Sumner lifts.
Compatible Sumner Series 2000 Models
-
783700 – 2010 Material Lift
-
783701 – 2015 Material Lift
-
783702 – 2020 Material Lift
-
783703 – 2025 Material Lift
-
783223 – 2010G Material Lift - Galvanized
-
786781 – 2015G Material Lift - Galvanized
-
786782 – 2020G Material Lift - Galvanized
-
786783 – 2025G Material Lift - Galvanized
Why Order OEM Sumner Leg Lock Parts
Using the correct OEM Sumner leg lock assembly replacement parts helps maintain fit, retention, and safe lift operation. Exact-match parts reduce downtime, simplify repairs, and help avoid compatibility problems caused by ordering the wrong lock weldment, plunger, or spring hardware.
Order Sumner Series 2000 Leg Lock Parts Online
Browse and order Sumner Series 2000 leg lock assembly replacement parts online, including the leg lock weldment, plunger, spring, and split ring components used in the leg lock setup. For the best results, search by part number, component name, or lift model.
