OEM Sumner Series 2000 Front Leg Assembly Parts
Shop Sumner Series 2000 front leg assembly parts for OEM replacement components used in compatible Series 2000 material lifts. This page is built for buyers looking to repair, maintain, or rebuild the front leg assembly using the official exploded parts breakdown for standard and galvanized lift configurations.
Find the Right Front Leg Parts for Sumner Series 2000 Lifts
If you need to replace a damaged front leg weldment, worn caster, roller leg, shaft, retainer ring, or related mounting hardware, this page is designed to help you identify and order the correct Sumner front leg assembly replacement parts faster. It is ideal for buyers searching by part number, component name, or lift size group.
Parts Included in the Series 2000 Front Leg Assembly
-
783732 – Front Leg Weldment, 10/12/15
-
783738 – Front Leg Weldment, 18/20/24/25
-
783498 – Front Leg Weldment, 10/12/15 Galvanized
-
783497 – Front Leg Weldment, 18/20/24/25 Galvanized
-
779005 – Caster, 5 in Plate Swivel (Red)
-
771269 – Screw, BHC 5/16-18 x 0.75
-
773098 – Spacer, 2-3/4 x 3-3/4 x 1/8 in Thick
-
772502 – Nut, Insert Jam 5/16-18
-
783569 – Roller Leg
-
783644 – Shaft, Leg Roller
-
776077 – Retainer Ring #5133-62
-
778352 – Tape, 2 in Black/Yellow Caution Strip

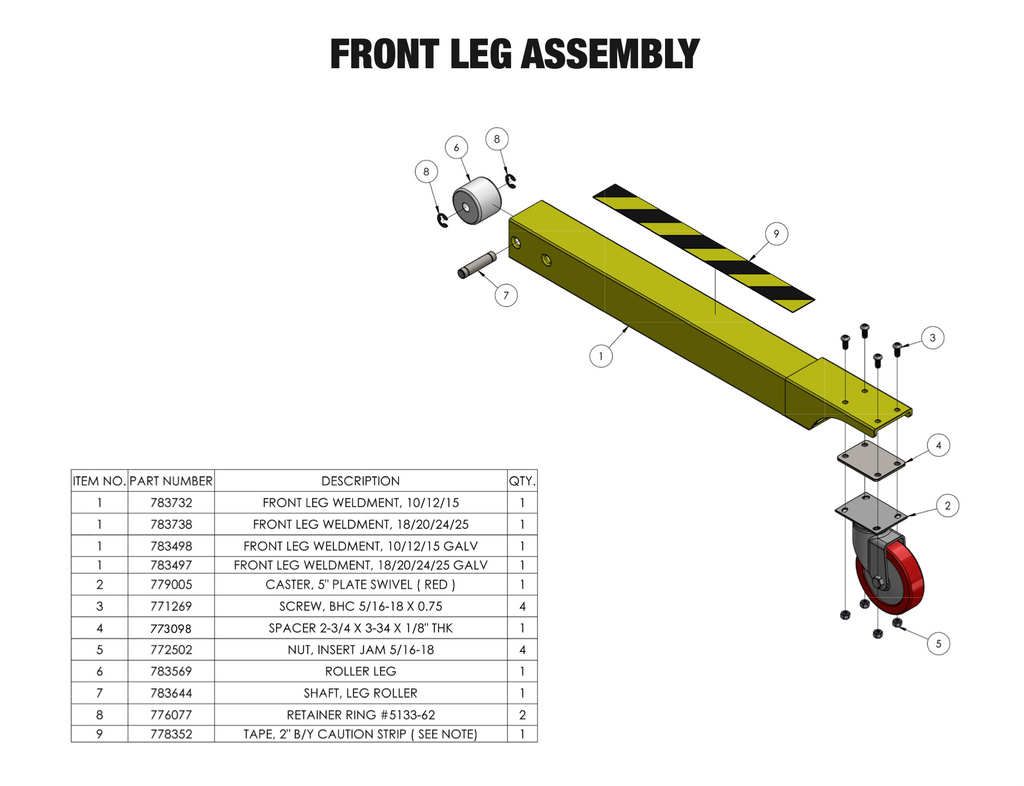

Built Around the Official Front Leg Assembly Diagram
This page is structured around the official Front Leg Assembly diagram so buyers can identify the correct parts for service and repair work. It is especially useful for customers replacing front leg weldments, casters, roller legs, shafts, and related front leg hardware on compatible Sumner lifts.
Compatible Sumner Series 2000 Models
-
783700 – 2010 Material Lift
-
783701 – 2015 Material Lift
-
783702 – 2020 Material Lift
-
783703 – 2025 Material Lift
-
783223 – 2010G Material Lift - Galvanized
-
786781 – 2015G Material Lift - Galvanized
-
786782 – 2020G Material Lift - Galvanized
-
786783 – 2025G Material Lift - Galvanized
Why Order OEM Sumner Front Leg Parts
Using the correct OEM Sumner front leg assembly replacement parts helps maintain fit, mobility, alignment, and safe lift operation. Exact-match parts reduce downtime, simplify repairs, and help avoid compatibility problems caused by ordering the wrong front leg weldment, caster, or roller components.
Order Sumner Series 2000 Front Leg Parts Online
Browse and order Sumner Series 2000 front leg assembly replacement parts online, including front leg weldments, casters, roller legs, shafts, retainer rings, caution tape, and related mounting hardware. For the best results, search by part number, component name, or lift model.
