OEM Sumner Series 2000 Fork Extension Kit Assembly Parts
Shop Sumner Series 2000 fork extension kit assembly parts for OEM replacement components used in compatible Series 2000 material lifts. This page is built for buyers looking to repair, maintain, or rebuild the fork extension kit assembly using the official exploded parts breakdown for the 783691 Fork Extension Install Kit.
Find the Right Fork Extension Parts for Sumner Series 2000 Lifts
If you need to replace a damaged fork extension weldment, worn limit rod, pin locator, detent, spring, or related hardware, this page is designed to help you identify and order the correct Sumner fork extension replacement parts faster. It is ideal for buyers searching by part number, component name, or fork extension kit reference.
Parts Included in the 783691 Fork Extension Kit Assembly
-
783691 – Fork Extension Install Kit
-
783588 – Fork Extension Weldment
-
783789 – Fork Extension Limit Rod, 2000/2100
-
774035 – Spacer, Butylite 1/2 x 1.453 in
-
783508 – Pin Locator
-
783509 – Pin Detent
-
776212 – Spring, #DWC-042-G-9
-
774092 – Pin, Roll 1/8 x 6.25
-
773042 – Washer, Flat 5/16
-
774053 – Cotter, Circle Z/P 0.048 x 0.75
Important Product Note
Fork assembly not included. This page is for the fork extension kit assembly parts only, not the full standard fork assembly. This helps buyers order the correct replacement components without confusion.

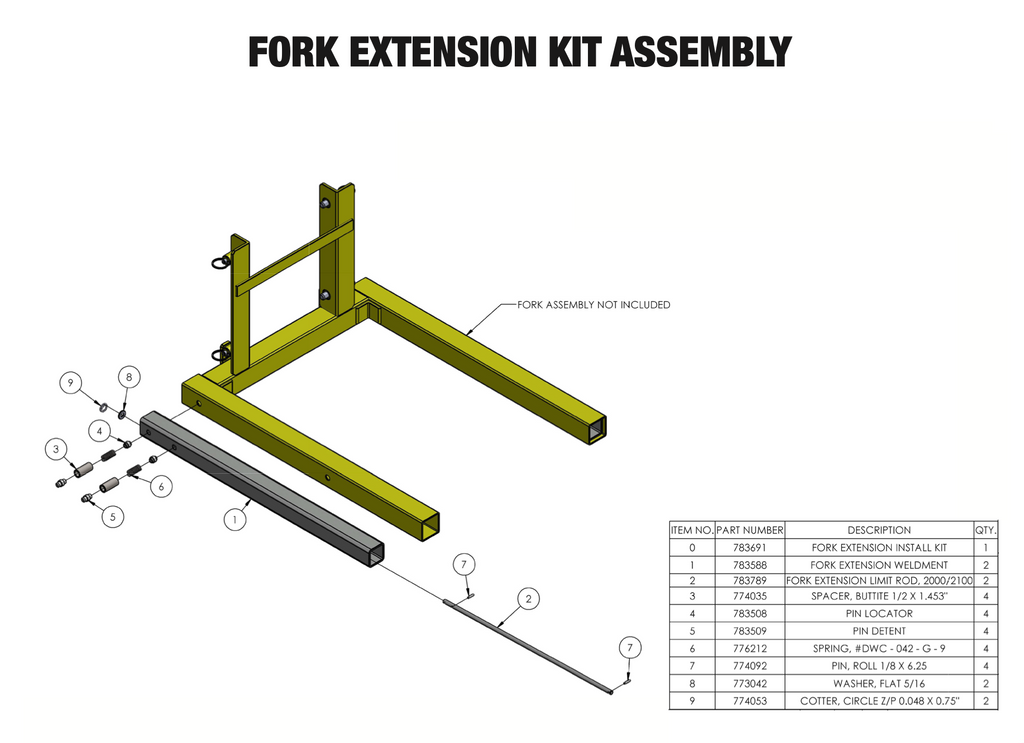

Built Around the Official Fork Extension Kit Assembly Diagram
This page is structured around the official Fork Extension Kit Assembly diagram so buyers can identify the correct parts for service and repair work. It is especially useful for customers replacing fork extension weldments, limit rods, pin locators, detents, and related hardware on compatible Sumner lifts.
Compatible Sumner Series 2000 Models
-
783700 – 2010 Material Lift
-
783701 – 2015 Material Lift
-
783702 – 2020 Material Lift
-
783703 – 2025 Material Lift
-
783223 – 2010G Material Lift - Galvanized
-
786781 – 2015G Material Lift - Galvanized
-
786782 – 2020G Material Lift - Galvanized
-
786783 – 2025G Material Lift - Galvanized
Why Order OEM Sumner Fork Extension Parts
Using the correct OEM Sumner fork extension kit replacement parts helps maintain fit, retention, and safe lift operation. Exact-match parts reduce downtime, simplify repairs, and help avoid compatibility problems caused by ordering the wrong extension hardware or internal components.
Order Sumner Series 2000 Fork Extension Parts Online
Browse and order Sumner Series 2000 fork extension kit assembly replacement parts online, including the fork extension weldment, limit rod, pin locator, detent, spring, and related hardware used in the 783691 install kit. For the best results, search by part number, component name, or kit reference.
