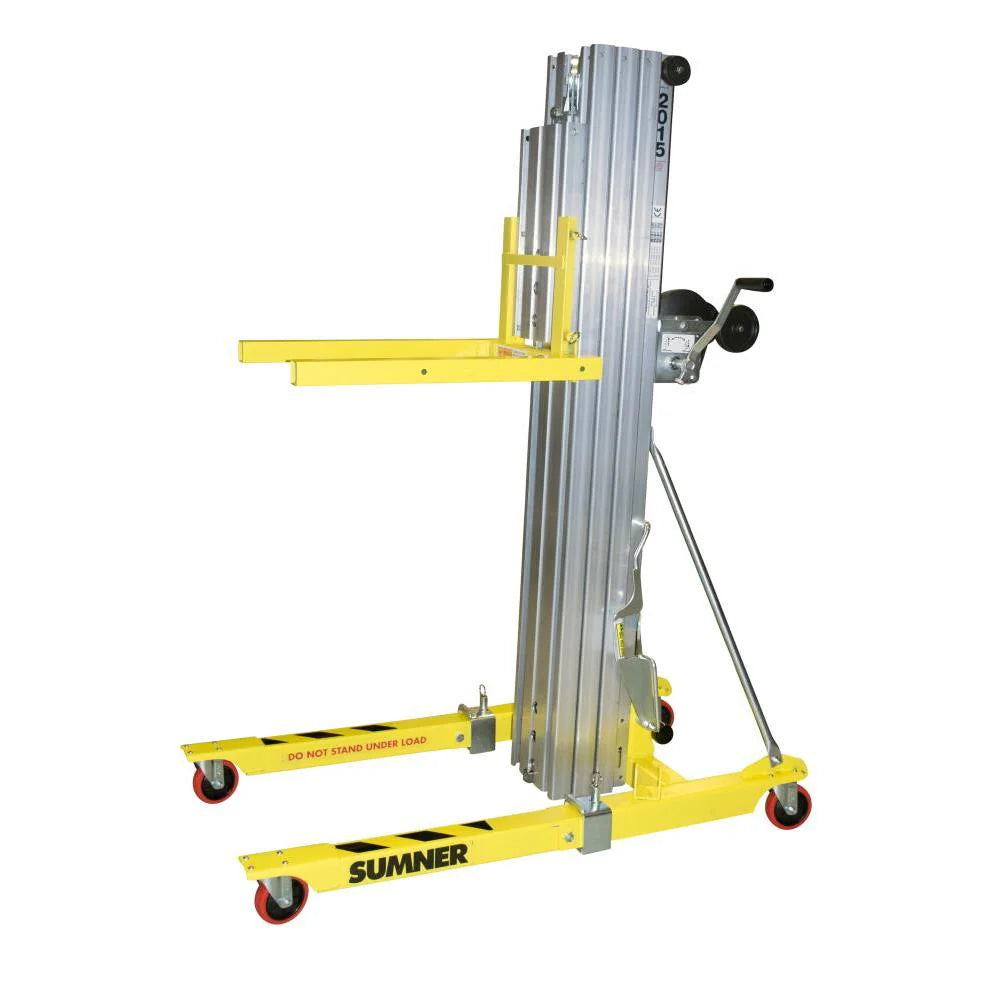

Sumner 2015 Material Lift
The Sumner 2015 Material Lift, part 783701, is a heavy-duty 15 ft material lift designed for lifting, positioning, and installing materials up to 800 lbs. Built for construction, HVAC, mechanical, electrical, and industrial applications, the 2015 delivers a strong balance of reach, lifting power, portability, and jobsite reliability.
Built for Higher Reach Without Sacrificing Jobsite Practicality
Part of the Series 2000 Material Lift line, the Sumner 2015 is built for professionals who need more height than a 10 ft lift while still keeping the equipment transportable and field-friendly. Its design includes internal cable routing, a 360° pulley guard, reversible forks, and tool-free assembly, making it a strong choice for repeated lifting work in demanding environments.
Key Benefits of the Sumner 2015
-
800 lb load capacity for serious material handling
-
15 ft lift height for higher overhead placement and installation work
-
Reversible forks for extended lifting flexibility
-
Internal cable routing for cleaner, safer lift operation
-
360° pulley guard for complete cable protection
-
Tool-free setup for quicker assembly and disassembly
-
Lift eye portability for easier transport handling
-
Stable footprint with stabilizer legs for dependable jobsite lifting
Common Applications
The Sumner 2015 material lift is ideal for lifting ductwork, piping, equipment, framing materials, and jobsite loads that require extra height with strong capacity. It is especially well suited for:
- HVAC contractors
- Mechanical contractors
- Electrical contractors
- Industrial maintenance teams
- Commercial construction crews
- Facility installation and service teams
Sumner 2015 Specifications
-
Model: 2015
-
Part Number: 783701
-
Product Line: Series 2000 Material Lift
-
Lifting Height: 15 ft
-
Load Capacity: 800 lbs
-
Height Stowed: 6 ft 4 in / 1.93 m
-
Length Stowed: 34 in / 0.86 m
-
Height Operating: 6 ft 4 in / 1.93 m
-
Width with Stabilizer Legs: 6 ft 2 in / 1.86 m
-
Ground Clearance: 2-1/2 in / 64 mm
-
Load Height Minimum: 6 in / 152 mm
-
Max Height Forks Down: 14 ft 2-3/4 in / 4.3 m
-
Max Height Forks Reversed: 16 ft 2-1/2 in / 4.9 m
-
Net Weight: 315 lb
-
Maximum Dimensions: 193.0 in H x 40.0 in W x 62.0 in L
Why Buy the Sumner 2015 Material Lift
If you need a 15 ft material lift with 800 lb capacity, the Sumner 2015 is one of the strongest options for contractors and industrial users who need added reach without stepping into oversized equipment. It combines lifting performance, safer cable management, field-ready portability, and the proven reliability of the Series 2000 platform.
Buy the Sumner 2015 Material Lift for dependable lifting in HVAC, mechanical, electrical, construction, and industrial applications. This model is ideal for buyers searching for a Sumner 2015, Sumner 783701, 15 ft material lift, or 800 lb contractor material lift.
