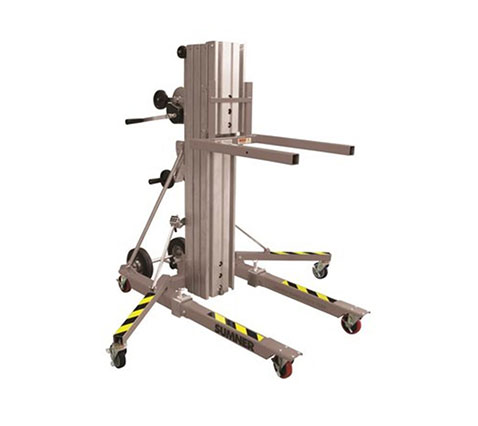

Sumner 2012SG Galvanized Short Stack Lift
The Sumner 2012SG Short Stack Lift, part 784093, is a galvanized 12 ft material lift built for contractors and industrial users who need compact lifting performance with added corrosion resistance. As part of the Series 2000 Short Stack™ lineup, the 2012SG delivers an 800 lb load capacity in a shorter, doorway-friendly frame that is easier to move, store, and position in tighter work areas.
Galvanized Short Stack Design for Compact, High-Capacity Lifting
The Sumner 2012SG is designed for buyers who want the compact transport advantages of the Short Stack platform but prefer a galvanized finish for tougher environments or longer-term durability. Its shorter stowed profile helps it fit through standard doorways, while still delivering a full 12 ft / 3.66 m lifting height.
Key Benefits of the Sumner 2012SG
-
800 lb load capacity for demanding material handling work
-
12 ft lifting height for overhead positioning and installation jobs
-
Galvanized construction option for added durability and corrosion resistance
-
Compact frame fits through standard doorways for easier indoor access
-
Integrated lifting eye for overhead crane handling
-
360° pulley guard for safer cable protection
-
Internal cable routing to reduce operator exposure
-
Reversible forks for greater height flexibility
-
Tool-free setup with plunger pins for faster assembly and transport
-
Accessory-ready platform with official Sumner optional accessories available
Common Applications
The Sumner 2012SG Galvanized Short Stack Lift is ideal for users who need compact, high-capacity lifting in tighter-access work areas while also wanting the benefits of a galvanized finish. It is especially well suited for:
- HVAC installation
- Mechanical contracting
- Warehouse material handling
- Indoor construction work
- Facility maintenance
- Work environments where corrosion resistance is preferred
Sumner 2012SG Specifications
-
Model: 2012SG
-
Part Number: 784093
-
Description: 2012S Short Stack Lift - Galvanized
-
Footprint: 62 x 31.25 in / 1,574 x 793 mm
-
Lifting Height: 12 ft / 3.66 m
-
Load Capacity: 800 lbs / 362 kg
-
Height Stowed: 63.5 in / 1,612 mm
-
Length Stowed: 34 in / 863 mm
-
Length Operating: 62 in / 1,574 mm
-
Base Width: 31.25 in / 793 mm
-
Width with Stabilizer Legs: 74 in / 1,879 mm
-
Ground Clearance: 2.5 in / 63 mm
-
Load Height: 6 in / 152 mm
-
Max Height: 10 ft 11 in / 3.3 m
-
Shipping Weight: 327 lbs / 148 kg
-
Shipping Dimensions: 36 x 30 x 67 in / 914 x 762 x 1,702 mm
Why Buy the Sumner 2012SG Short Stack Lift
If you need a compact galvanized 12 ft material lift with 800 lb capacity, the Sumner 2012SG is one of the strongest options in the Short Stack category. It combines the maneuverability and tighter-access convenience of the Short Stack platform with the added appeal of a galvanized finish for buyers who want a more corrosion-resistant lift.
Order the Sumner 2012SG Online
Buy the Sumner 2012SG Galvanized Short Stack Lift for compact, high-capacity lifting in HVAC, mechanical, warehouse, and indoor construction applications. This model is ideal for buyers searching for a Sumner 2012SG, Sumner 784093, galvanized short stack lift, or 12 ft 800 lb compact material lift.
