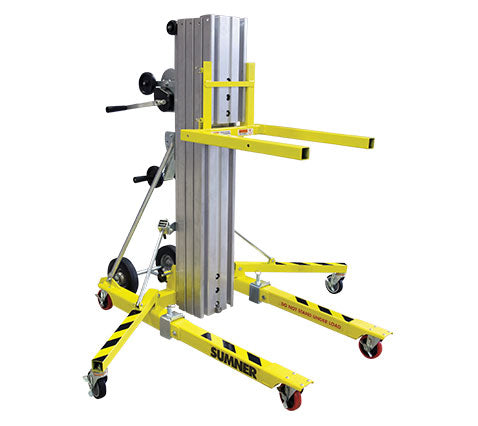

Sumner 2012S Short Stack Lift
The Sumner 2012S Short Stack Lift, part 786383, is a compact 12 ft material lift built for indoor lifting, tight-access jobs, and contractors who need serious lifting capacity in a shorter, more maneuverable package. As part of the Series 2000 Short Stack™ lineup, the 2012S delivers an 800 lb load capacity while maintaining a compact footprint that fits through standard doorways.
Compact Short Stack Design with Full Lifting Performance
The Sumner 2012S is designed for buyers who need the lifting strength of a contractor-grade material lift without the bulk of a taller frame. Its shorter stowed design makes it easier to move indoors, store, and position in tighter workspaces, while the lift still reaches a full 12 ft / 3.66 m lifting height.
Key Benefits of the Sumner 2012S
-
800 lb load capacity for demanding material handling applications
-
12 ft lifting height for overhead positioning and installation work
-
Compact frame fits through standard doorways for easier indoor access
-
Integrated lifting eye for overhead crane handling
-
360° pulley guard for improved cable protection and operator safety
-
Internal cable routing to reduce exposure during operation
-
Reversible forks for added lift height flexibility
-
Tool-free setup with plunger pins for fast assembly and transport
-
Available optional accessories including mast brake kit, pipe cradle, boom assembly, tray assembly, and fork extension kit
Common Applications
The Sumner 2012S Short Stack Lift is ideal for contractors and industrial users working in tighter or more height-restricted environments where standard material lifts may be harder to maneuver. It is especially well suited for:
- HVAC installation
- Mechanical contracting
- Warehouse material handling
- Indoor construction work
- Facility maintenance
- Overhead equipment positioning
Sumner 2012S Specifications
-
Model: 2012S
-
Part Number: 786383
-
Description: 2012S Short Stack Lift
-
Footprint: 62 x 31.25 in / 1,574 x 793 mm
-
Lifting Height: 12 ft / 3.66 m
-
Load Capacity: 800 lbs / 362 kg
-
Net Weight: 320 lbs / 145.1 kg
-
Height Stowed: 63.5 in / 1,612 mm
-
Length Stowed: 34 in / 863 mm
-
Length Operating: 62 in / 1,574 mm
-
Base Width: 31.25 in / 793 mm
-
Width with Stabilizer Legs: 74 in / 1,879 mm
-
Ground Clearance: 2.5 in / 63 mm
-
Load Height: 6 in / 152 mm
-
Max Height: 10 ft 11 in / 3.3 m
-
Shipping Weight: 327 lbs / 148 kg
-
Shipping Dimensions: 36 x 30 x 67 in / 914 x 762 x 1,702 mm
Why Buy the Sumner 2012S Short Stack Lift
If you need a compact 12 ft material lift with 800 lb capacity, the Sumner 2012S is one of the strongest options in its class. It gives you the portability and indoor maneuverability of a short-stack lift while still delivering the lifting strength, safety features, and accessory support expected from the Sumner Series 2000 platform.
Order the Sumner 2012S Online
Buy the Sumner 2012S Short Stack Lift for compact, high-capacity lifting in HVAC, mechanical, warehouse, and indoor construction applications. This model is ideal for buyers searching for a Sumner 2012S, Sumner 786383, 12 ft short stack lift, or 800 lb compact material lift.
